The F3 UXO is a detector suitable for UXO detection and battle area clearance operations.
Overview

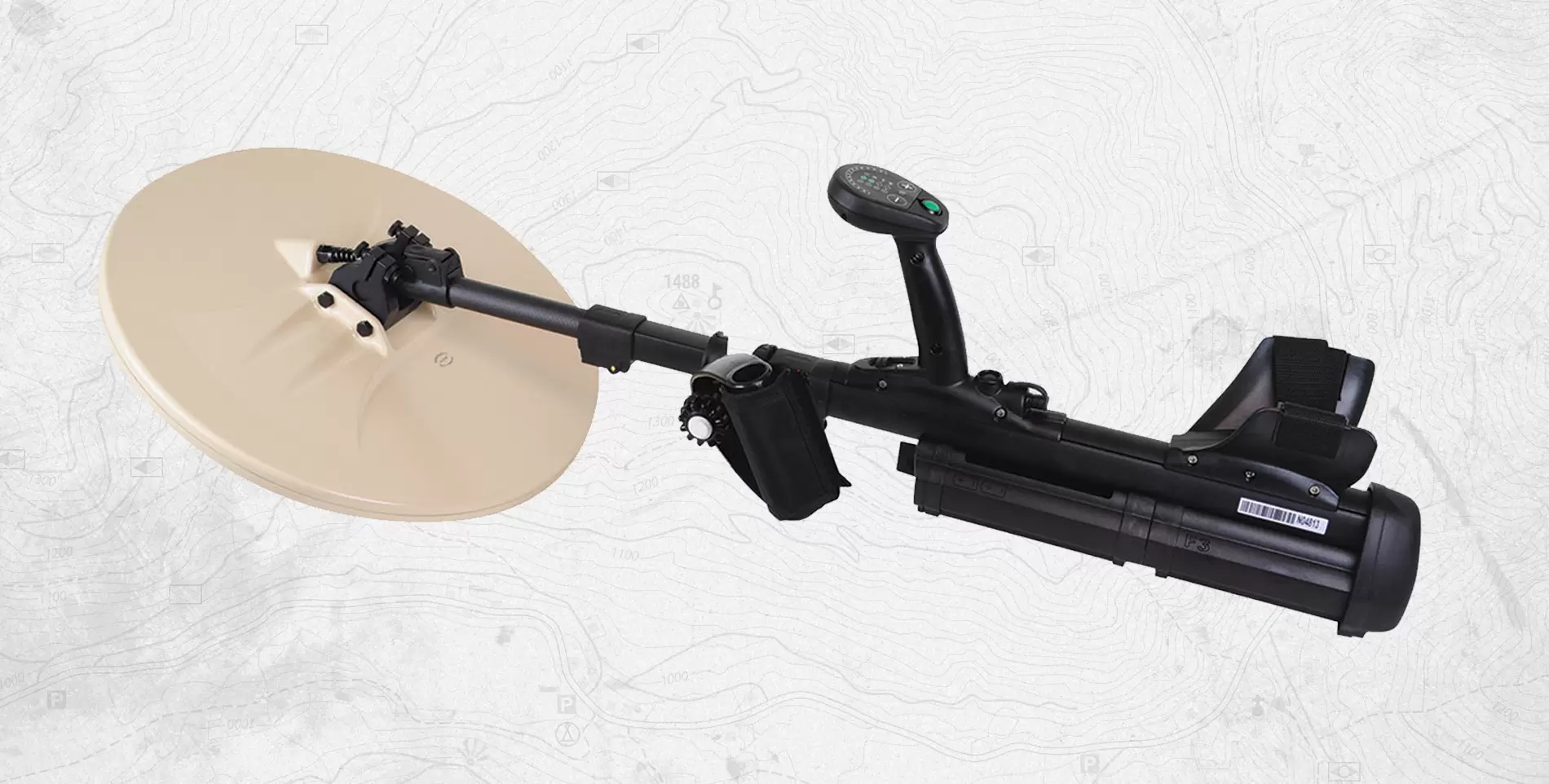

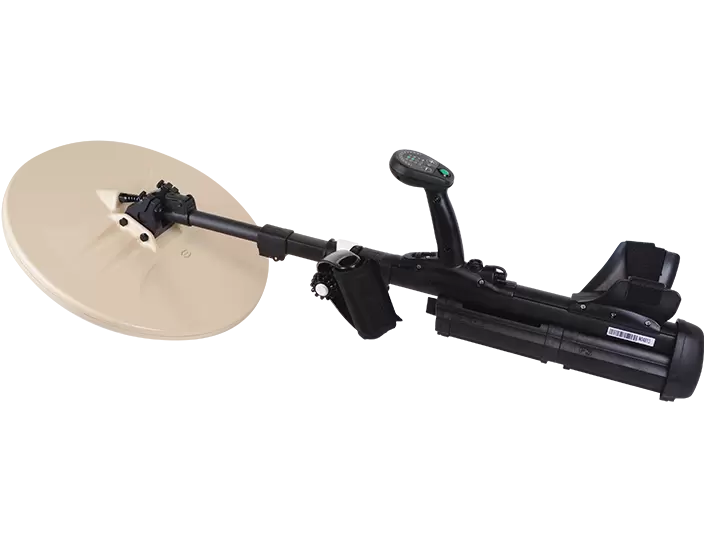

The F3 UXO is an F3 detector (any configuration) with a 450mm coil suitable for UXO detection and battle area clearance operations.
The F3 UXO incorporates all the features of Minelab’s unique, proven and highly renowned Multi Period Sensing technology into Minelab’s new BiPOLAR technology.
Features
Coil
450mm coil maximising depth of detection of UXO
Ease of Use
Simple to operate, maintain and service while fully adjustable for operator comfort
Sensitivity
Selectable sensitivity through use of innovative ‘Sensitivity Endcaps’ with fast and accurate pinpointing of targets.
Battery
Detachable battery pack with improved battery life.
Water Resistant
Water resistant up to 3 metres.
Rugged
Constructed from impact resistant materials and designed to survive in any operating environment with enclosed protected cables.
- F3 Mine & UXO Detector Brochure EN (1.12 MB)
F3 UXO and Battle Clearance Metal Detector by Minelab Tech Specs
Application
Detection of ERW (explosive Remnants of War), UXO and for Battle Area Clearance.
Technology
Pulse Induction: Bi-Polar Multi Period Sensing
Frequency/Transmission
1.25 kHz +/- 3% PRF
Coil(standard)
440mm Monoloop Coil
Audio Output
Internal Loudspeaker and Earset
Headphones Supplied
Yes, choice of Earset Speaker On (not muting, humanitarian) and Earset Speaker Off (muting, tactical)
Visual Display
No F3 UXO, F3L has LED Display
Backlight
-
Product ID
254275
USB Connectivity
No, Standard RS 232 connectivity
Memory
-
Depth Indication
-
Detect Modes
-
Discrimination
No
Timings
Yes, selected by changing endcap
Audio Tone
-
Audio Type
-
Ground Balance
Yes
Ground Balance Type
Fixed Ground Balance
Trash Density
-
Pinpoint
-
Sensitivity Adjust
Sensitivity adjusted by changing endcaps
Tune/Noise Cancel
Semi Automatic
Threshold
Threshold tone or Heartbeat Conformation tone
Target Volume Adjust
-
Battery
4x D Cell LR20 Alkaline or Rechargeable (NiCad or NiMh)
Low battery alert
Yes
Length
1620 mm to 7620 mm
Weight
4.1 kg with batteries, 3.2 kg with detached battery Pack
Warranty
15 months
