Dual-Sensor Detector, combining unique Metal Detection and Ground Penetrating Radar technologies with advanced multi-frequency detection.
Overview
The MDS-20 combines advanced multi-frequency detection with a battle-proven Ground Penetrating Rader to deliver superior results against a full spectrum of threats. Rapid start-up, intuitive controls and a compact rugged build.
- Low-conductivity and minimum-metal IED components such as carbon rods, short/thin wires, and command wires
- Plastic Homemade Explosives (HME) containers
- Minimum-metal Anti-Tank (AT) and Anti-Personnel (AP) landmines
- Unexploded Ordnance (UXO)
Features

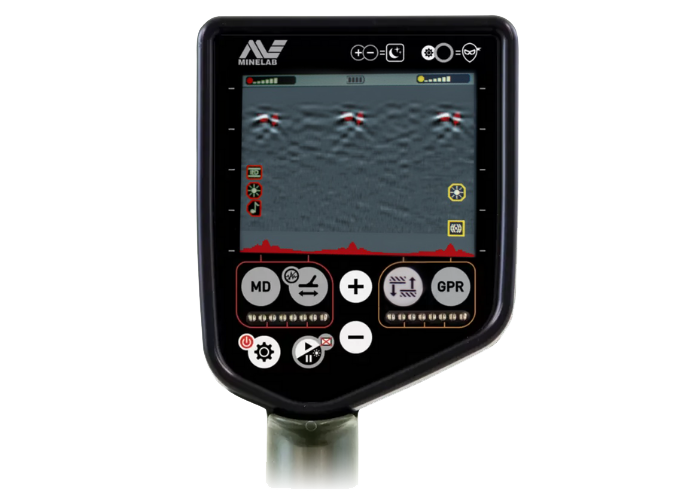

INTUITIVE USER INTERFACE
Engineered for clarity and efficiency, the streamlined interface minimises training requirements and supports rapid, stress-proof operation in demanding environments, ensuring every operator can perform with certainty.

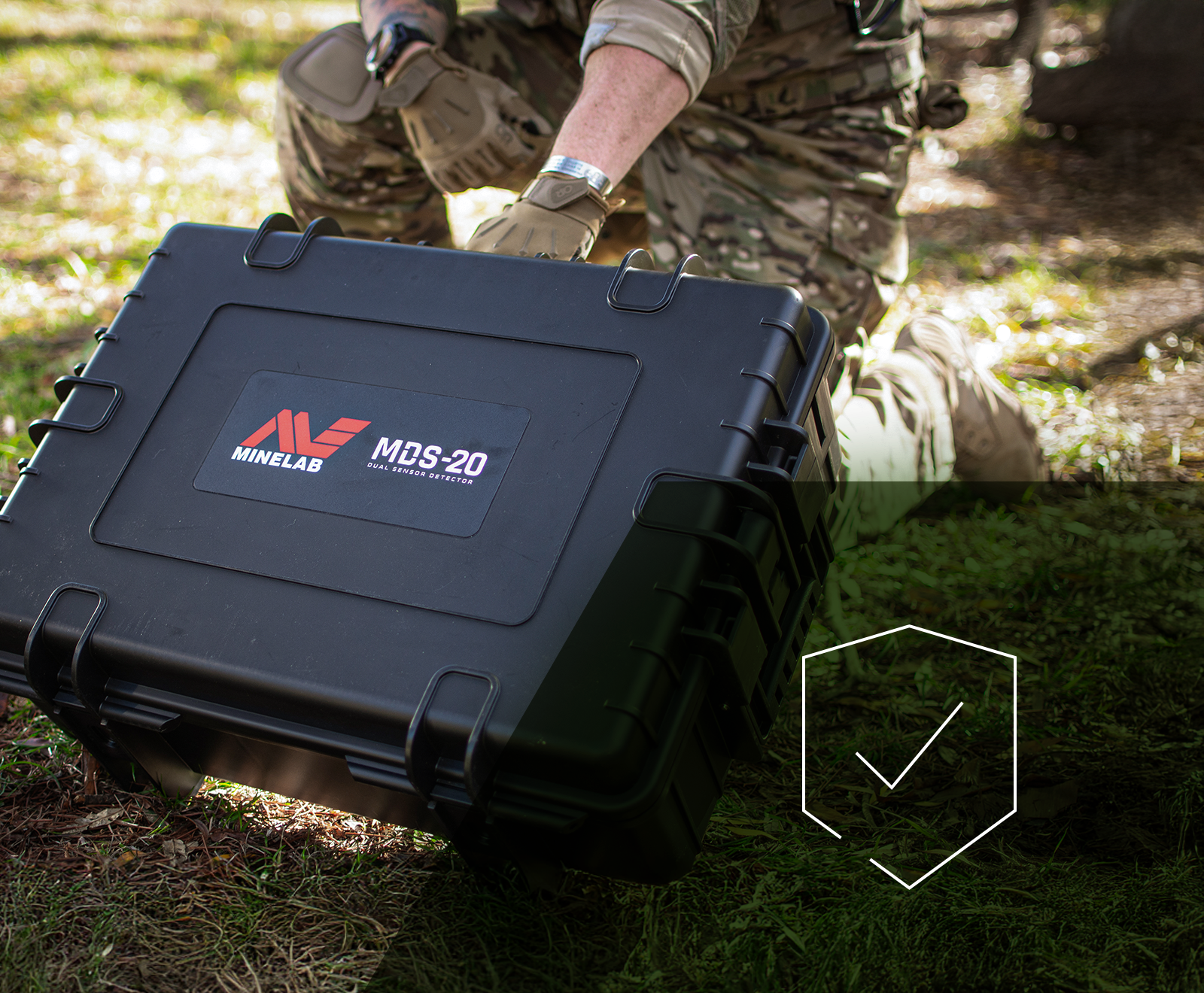

OPERATIONAL SAFETY ASSURANCE
The MDS-20 prevents accidental shutdown of both sensors. Operator awareness is maintained through a continuous 'heartbeat' signal during operation. Built-In-Test equipment monitors and confirms detector functionality.

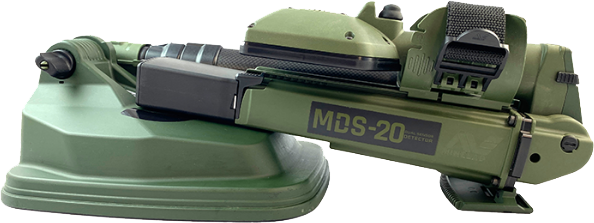

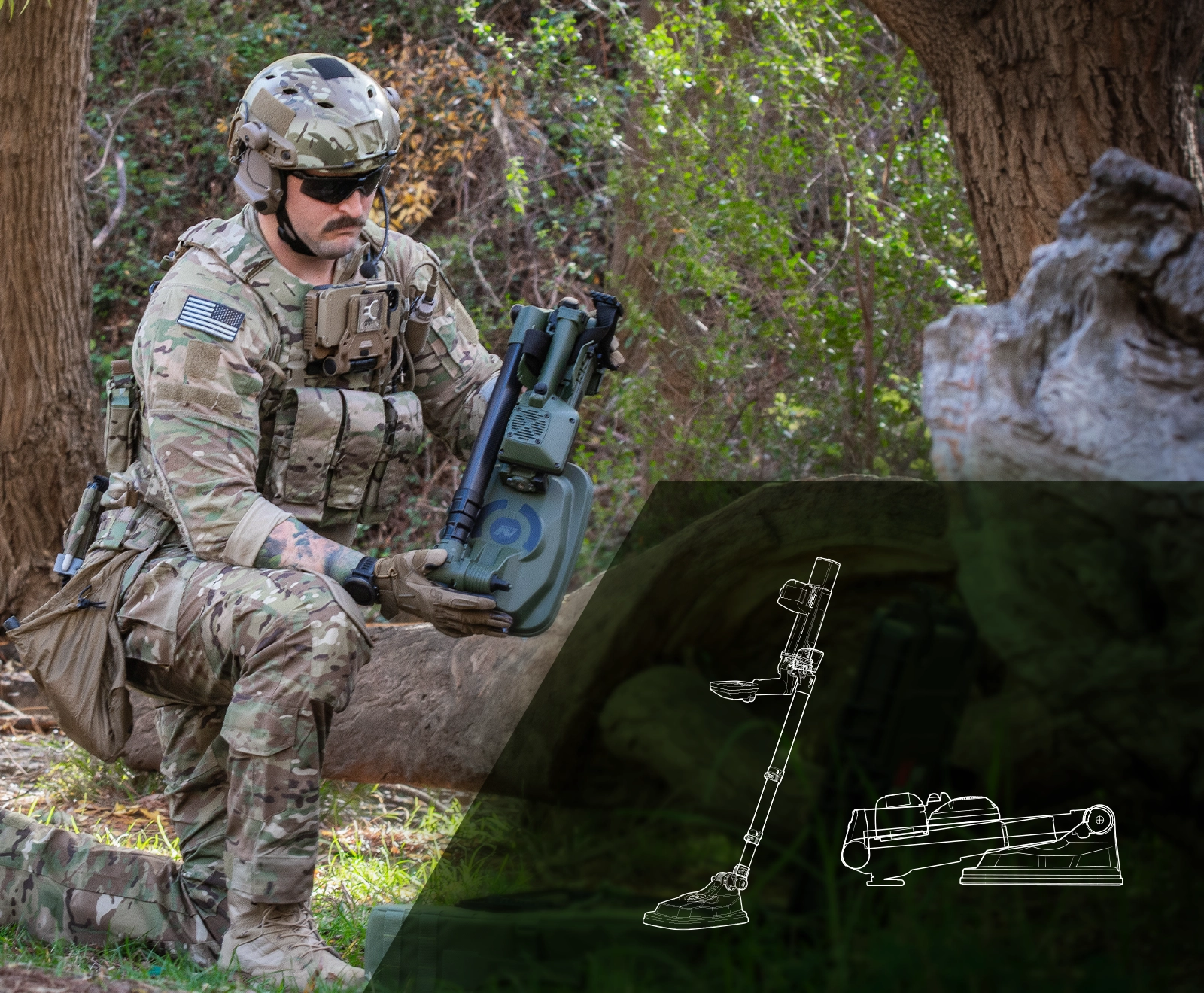

COMPACT AND RUGGED BUILD
Extremely lightweight and compact detector designed to minimise operator fatigue. Weighs only 2.9 (6.4 lbs), built for mobility and sustained field performance with a MIL-STD-810H build. As the smallest dual sensor detector, the MDS-20 measures only 47 × 20 × 16 cm to fit in a pack and carry anywhere.

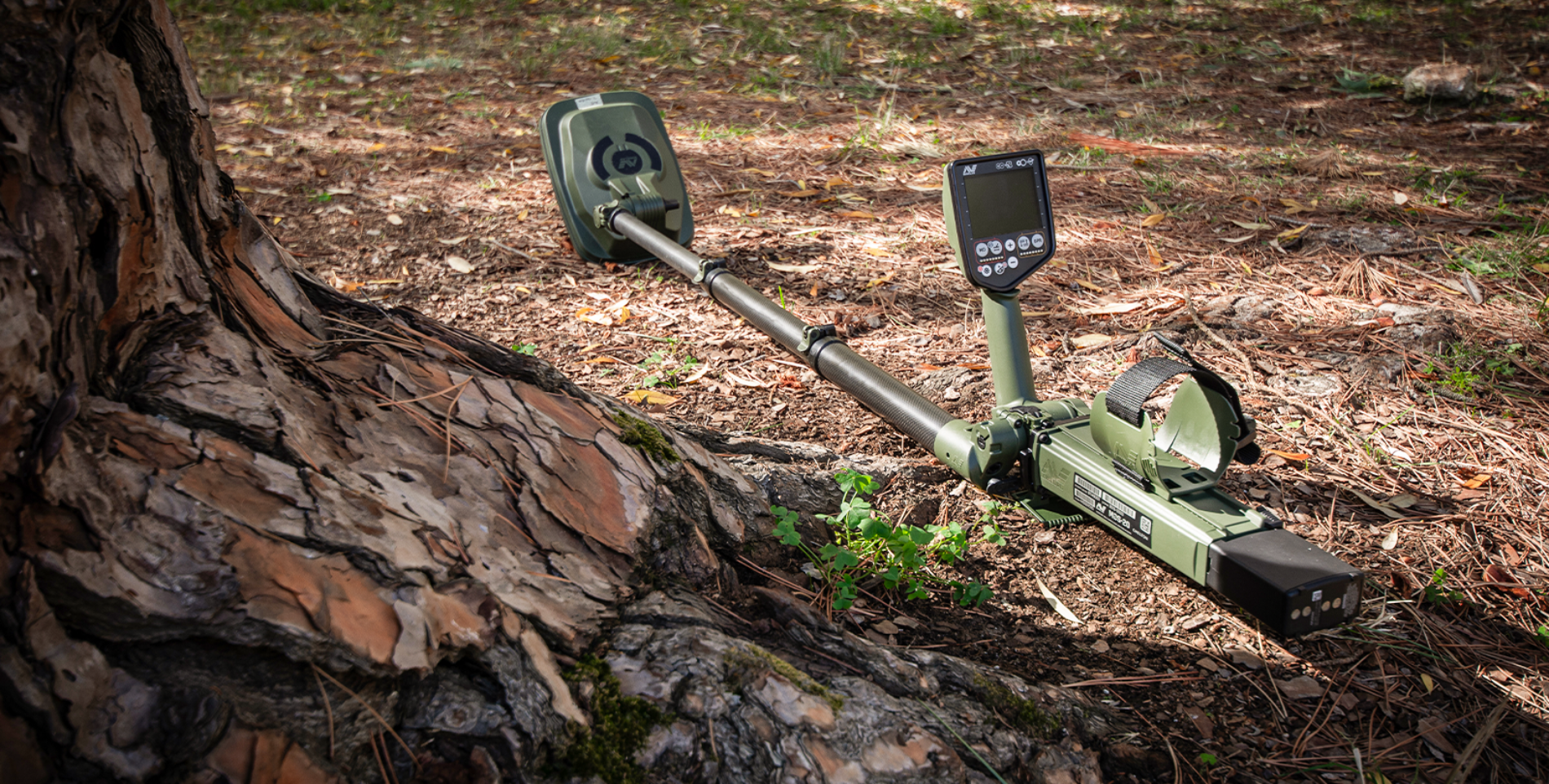

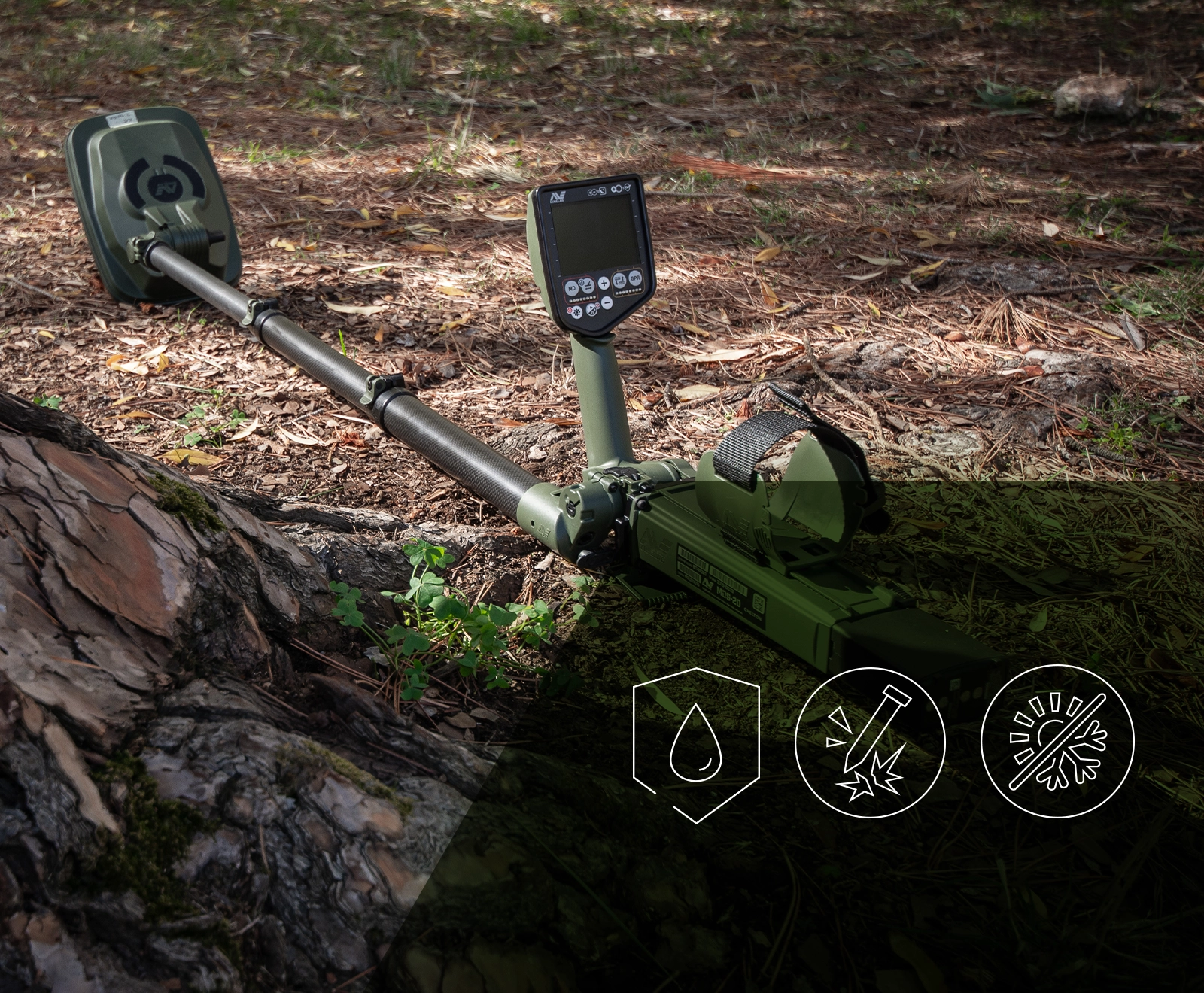

ALL SOILS AND ALL CONDITIONS
Superior detection performance in highly mineralised, lateritic and magnetic soils, in all conditions and all terrains. Engineered for consistency and resilience, the detector adapts to unpredictable ground environments to ensure no threat goes unnoticed. IP68-rated and waterproof up to 3 m (10 ft), the MDS-20 is corrosion and impact resistant, proven to perform in harsh conditions.

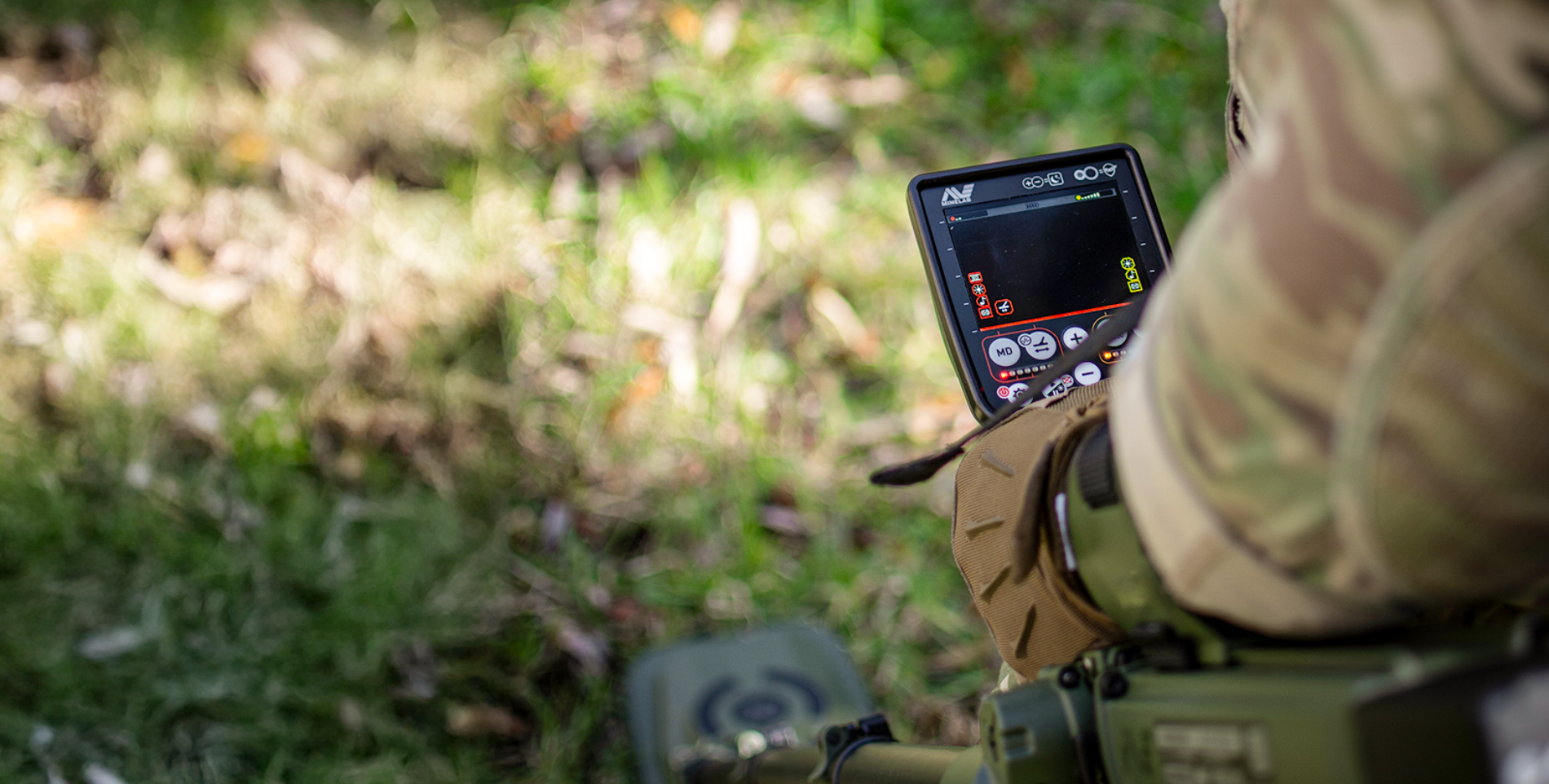

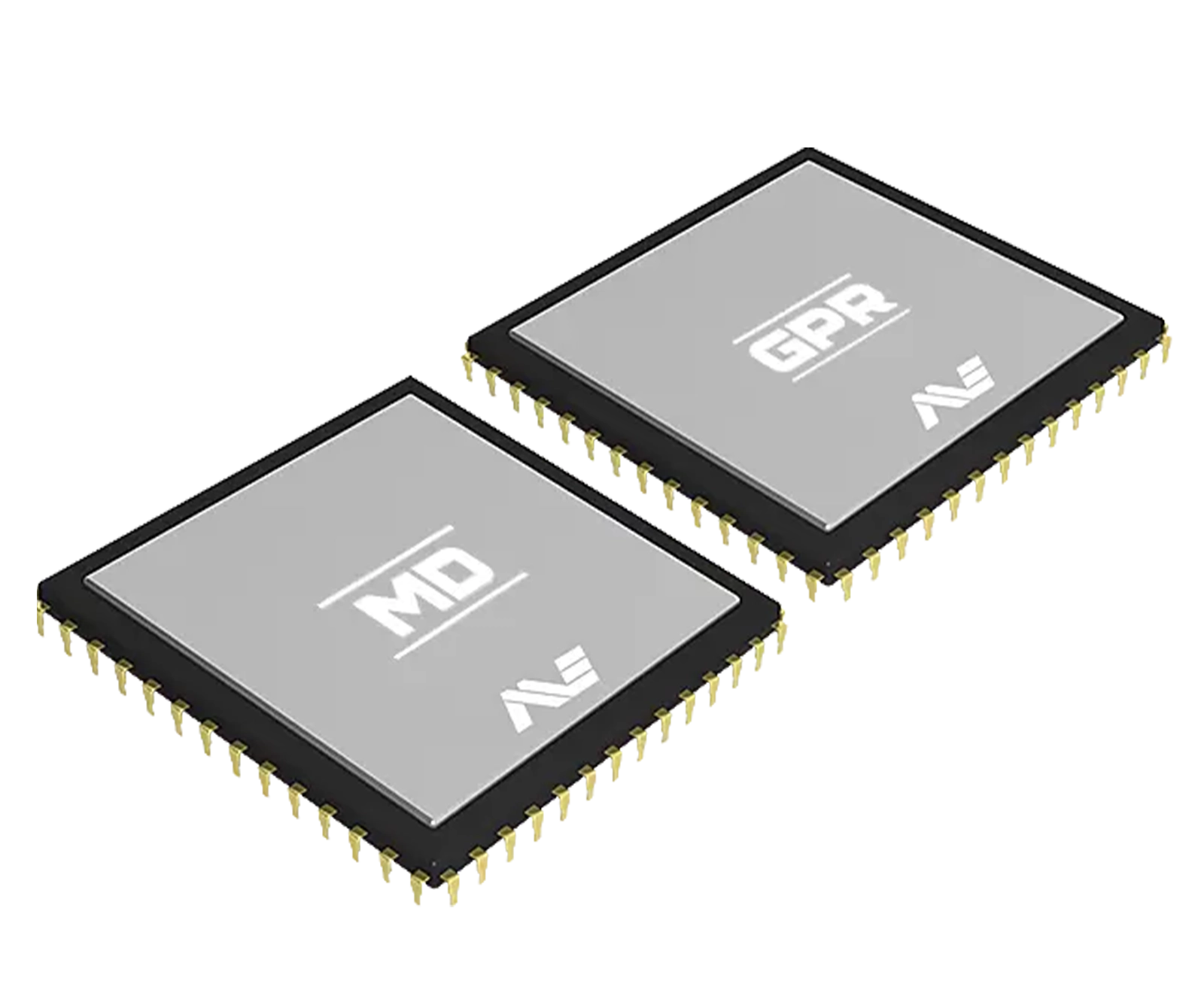

CONTINUOUS REAL-TIME DETECTION DISPLAY
Gain constant visual feedback with simultaneous metal detection and ground penetration radar data. The integrated pause function allows operators to stop and interrogate potential targets, reducing false positives and improving threat confirmation. MDS-20 is the safest dual sensor detector, combining Minelab's best-in-class metal detection with ground penetrating radar for unmatched accuracy.
LITHIUM-ION BATTERY
A 6.8 Ah lithium-ion rechargeable battery, compatible with PRC-152 radio systems, delivers up to seven hours of operational runtime. An included AA battery pack provides backup power during extended missions or remote operations.
METAL DETECTION (MD) AND GROUND PENETRATING RADAR TECHNOLOGIES (GPR)
Variable Metal Detection and Ground Penetrating Radar Sensitivity with volume control. Real-time detection display with pause function for closer target analysis. Powered by Minelab's Multi-Frequency Digital technology and Ultra-Wide Band Stepped Frequency Radar to identify conductive and non-conductive targets in all soil conditions.
ELECTROMAGNETIC INTERFERENCE IMMUNE AND ENHANCED SENSITIVITY
MD figure-8 Rx coil reduces EMI. Superior performance in mineralised, lateritic and magnetic soils with a rugged ML-STD-810H build.
ACURATE TARGET LOCATION
Multi-mode precision with covert IR and silent settings, in the smallest dual sensor detector built for portability.
- Detection, Interrogation and Pinpointing modes.
- Tactical (IR light only) and “No Light, No Sound” settings for stealth missions.
- Fast and accurate location of targets.
WATERPROOF
Coil and control unit, waterproof up to 3 m (10 ft) for all terrain and weather conditions.

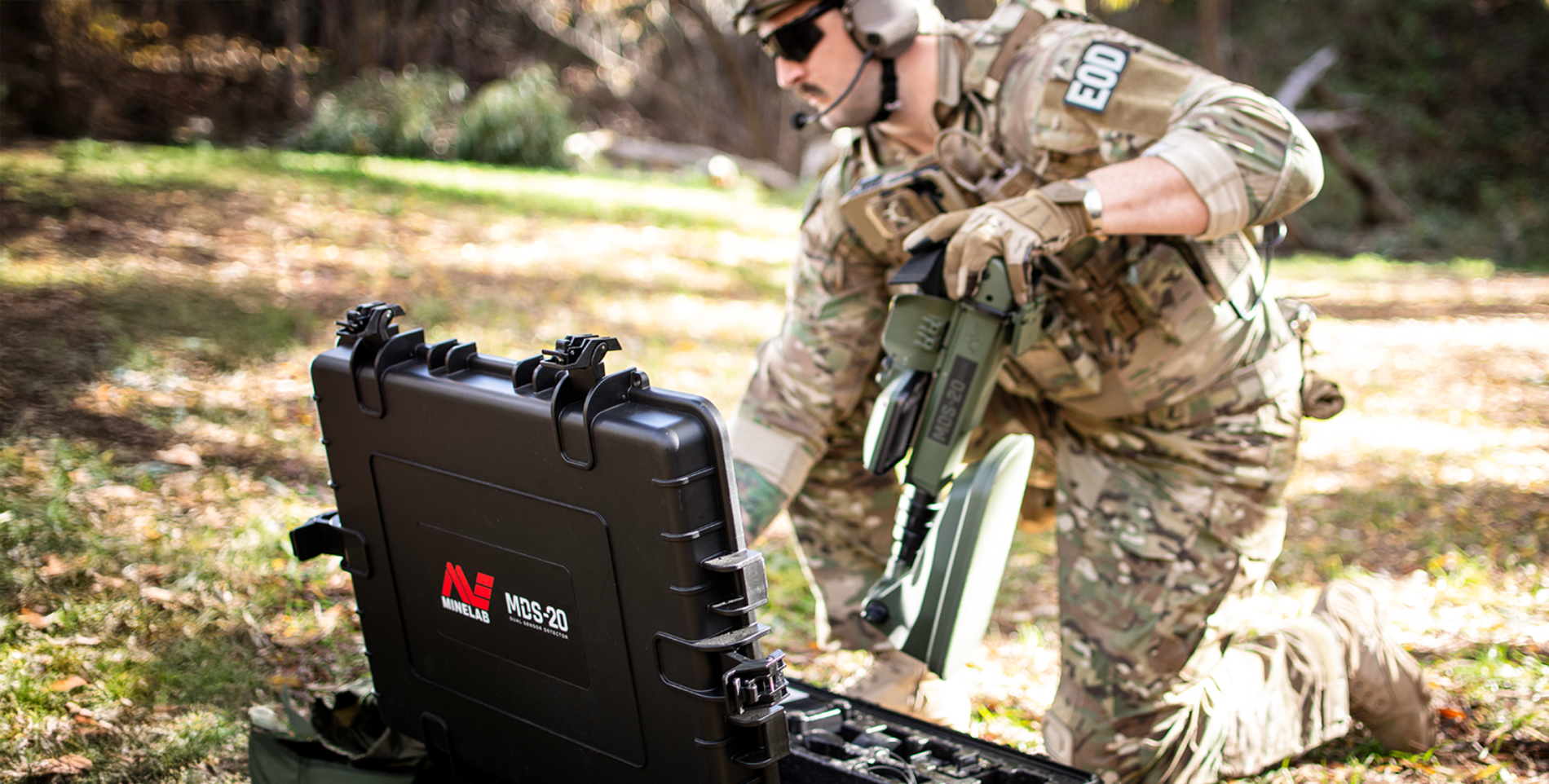

COMPLETE KIT
The MDS-20 comes complete with:
- Hard transit carrying case
- Carry bag
- MDS-20 detector
- Battery charger
- Two lithium-ion rechargeable batteries
- MDS-20 earset
- Operations manual
- Field guide
- GPR test target
- MDS-20 Brochure [EN] (5.3 MB)
MDS-20 Dual Sensor Landmine Detector by Minelab Tech Specs
Collapsed Detector Dimensions
485 × 158 × 195 mm
Extended Detector Dimensions
1567 × 275 × 195 mm
Detector Weight
2.9 kg (6.4 lbs)
Lithium-Ion Battery
6.8 Ah Battery Life: >7 hours
AA Battery Pack
For use with AA alkaline or rechargeable batteries
Detection Alert
All alerts independently configurable, Audio Speaker, Audio Headphones, MD and GPR target indicators (with Night Vision Goggles compatibility), Vibration Motor (Haptic feedback) and Colour LCD 3.5” with Night Vision Mode
Waterproof
<3 meters
Standards
MIL-STD-810H
EMC
MIL-STD-461G
IP Rating
IP68
Operating Temperature
-30°C to +60°C
Storage Temperature Range
-50°C to +80°C
Metal Detection Sensor
Technology: Simultaneous Multi-Frequency Digital
Coil: 269 × 191 mm Mono Transmit, Figure 8 Receive Coil
MD Modes: Detection / Interrogation / Pinpointing
Calibration: Ground Balance and Noise Cancel
Ground Penetrating Radar
Technology: Ultra-Wide Band (UWB) Stepped Frequency Radar
