Minelab’s unique Simultaneous Multi-Frequency Digital technology results in the MF5 providing superior detection capabilities by combining the advantages of Pulse Induction and Continuous Wave technologies.
Overview
The MF5 is a lightweight and compact detector designed for operator comfort and ease of use. The MF5 is suitable for Non-Government Organisations (NGO) and military clearance operations.
Features

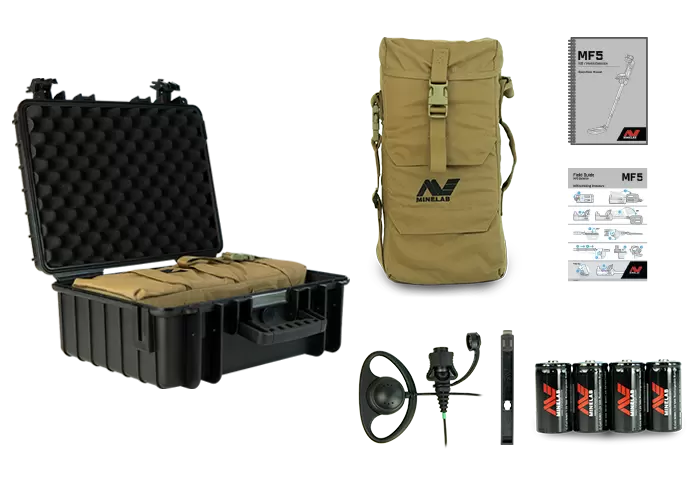

The MF5 is supplied as a Detecting Set
Included Items:
- MF5 detector
- Carry Bag
- Hard Transit Case
- C cell Batteries (NiMH or Alkaline x 4)
- Earset
- Test Piece
- Operations Manual
- Field Guide
Detection Capabilities
The MF5 detects metal and conductive targets, including fine wires and carbon rods. It provides indications of ferrous and non-ferrous targets, carbon rods, and fine wires. The MF5 is able to detect targets in all types of soil, regardless of mineralised content, and can operate in environments of high electrical interference.

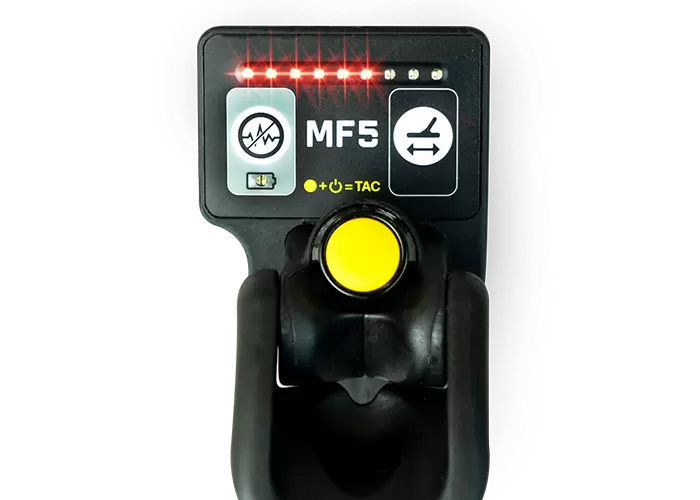

Simple and Intuitive Controls
The MF5 has simple and intuitive controls, including:
- Three sensor modes: Detection Mode, Interrogation Mode and Pinpoint Mode.
- Provision of a Tactical Mode selectable at start-up anytime or during operations.
- Selectable Target Alert Responses: Audio, Visual (LED) and Vibration.
Sensitivity
Selectable sensitivity.
Volume
Adjustable volume.
Adjustable
Fully adjustable for operator comfort.
Set up
Fast and simple three step setup procedure.
Waterproof
Waterproof (IP 68).
Coil
Open web coil.
- MF5 Instruction Manual [EN] (6.19 MB)
- MF5 Instruction Manual [ES] (6.19 MB)
- MF5 Field Guide (EN).pdf (1.65 MB)
- MF5 Field Guide [ES] (1.68 MB)
- MF5 Brochure [EN] (1.62 MB)
- MF5 Brochure [FR] (1.61 MB)
- MF5 Brochure [AR] (1.62 MB)
- MF5 Service Manual [EN] (6.39 MB)
MF5 Military Clearance Landmine Detector by Minelab Tech Specs
MF5 DETECTION SPECIFICATIONS
Key Technologies
Simultaneous Multi-Frequency Digital Metal Detection
Coil
Transmit Coil: 269 x 191 mm (10.6" x 7.5") Monoloop | Receive Coil: Figure 8
Operating Frequencies
Four frequencies in the range 5 kHz to 75 kHz
Output Power
< -30dBm
Sensitivity
1 to 5
Noise Cancel
Automatic, Operator initiated
Ground Balance
Automatic, Operator initiated, Settings retained after switch off
Target Identification
Ferrous / Non-Ferrous / Carbon Rods — Fine Wires
MF5 GENERAL SPECIFICATIONS
Volume Control
1 to 9

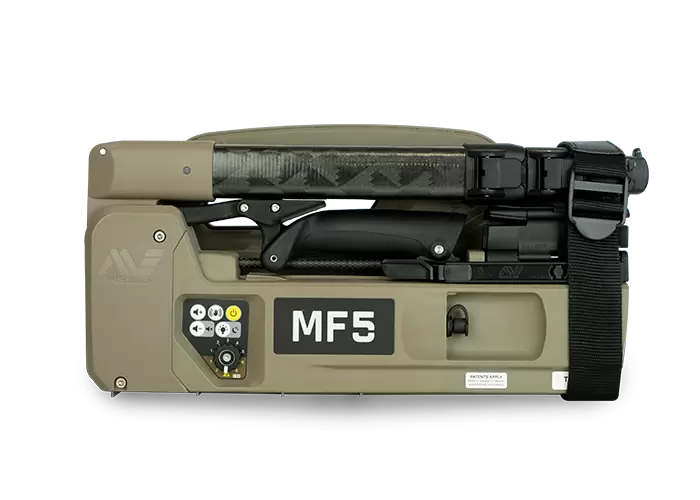

Collapsed Size
400 x 99 x 194 mm (15.7" x 3.9" x 7.6")
Extended Size
1615 x 191 x 237 mm (63.6" x 7.5" x 9.3")
Weight, Operational
2.8 kg (6.2 lb) with rechargeable NiMH C cell batteries
Audio Output
Internal Speaker / MF5 Earset
Earset
MF5 Earset
Waterproof
Waterproof to 3 m / 10 ft (IP 68)
Operating Temprature Range
-30°C to +60°C (-22°F to 140°F)
Storage Temprature Range
-30°C to +60°C (-22°F to 176°F)
Enviromental
MIL-STD-810G
EMC
MIL-STD-461G
Compliance
CE / RCM / FCC / IC
Software Upgradeable
Yes
Battery Compatibility
Rechargeable NiMH / Alkaline C cells
Battery Life
10 hours with NiMH batteries
