Overview

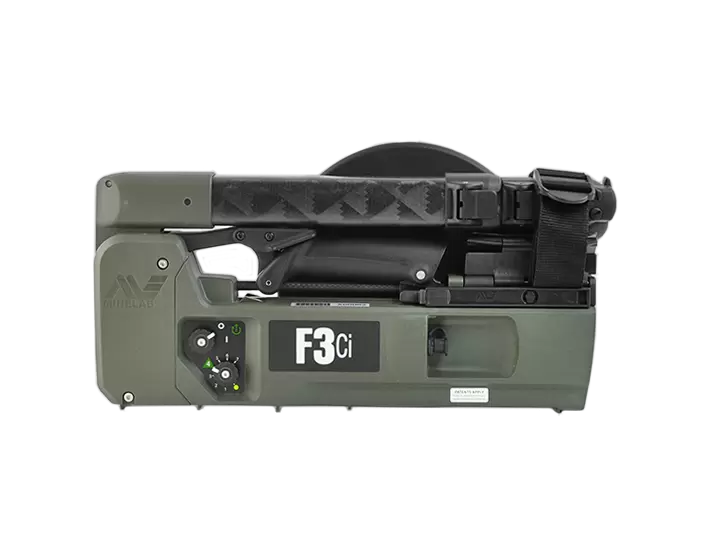

The F3Ci features the F3 Compact mechanical platform but will detect many of the IED components that other pulse induction mine detectors can miss.
Features
Sensitive
The F3Ci features the F3 Compact mechanical platform but will detect many of the IED components that other pulse induction mine detectors can miss.
Accurate Target Detection
Able to detect, interrogate and pinpoint ferrous and non-ferous targets.
User Friendly
Simple to operate, extended battery life and fully adjustable for operator comfort over long periods.
Rugged
Target Alerts
Audio, visual and vibration alert cues.
Waterproof (IP68)
- Minelab F3Ci Countermine Detector Brochure (10.10 MB)
- Minelab F3Ci Countermine Detector Brochure (French) (892.69 KB)
F3Ci Highly Sensitive Landmine Detector by Minelab Tech Specs
Application
Enhanced detection of IEDs. Detection of ERW (explosive Remnants of War), Landmines and UXO, for Military, Security and Humanitarian Clearance.
Technology
Minelab Continuous Wave Metal Detector - VFLEX
Frequency/Transmission
18.75 kHz
Coil(standard)
200 mm Double-D coil
Audio Output
Internal Loudspeaker and Earset
Headphones Supplied
Earset Speaker On (humanitarian) or Earset Speaker Off (tactical, muting)
Visual Display
LED Display
Backlight
No
Product ID
254266
USB Connectivity
Yes
Memory
-
Depth Indication
-
Detect Modes
Detection, Interrogation and Pinpoint modes.
Discrimination
No
Timings
-
Audio Tone
-
Audio Type
-
Ground Balance
Yes
Ground Balance Type
Fixed Ground Balance
Trash Density
-
Pinpoint
Yes
Sensitivity Adjust
7 preset sensitivity settings
Tune/Noise Cancel
Semi Automatic
Threshold
No, Heartbeat conformation tone.
Target Volume Adjust
No
Battery
4 x C-Cell Batteries, Alkaline or Rechargeable (NiCad or NiMh)
Low battery alert
Yes
Length
1530 mm to 400 mm
Weight
2.5 kg
Warranty
15 months
